Kerry Lodge Bridge

From Engineering Heritage Australia


Kerry Lodge Bridge is an historic masonry arch bridge constructed in 1834-5 and still in service. For most of its 65.5m length, it is a solid causeway between unusually coloured dolerite walls. In the centre of the causeway, there is a single segmental stone arch of 6.1 m span and 8m height over Jinglers Creek.

It was most likely designed by Lieutenant William Kenworthy, along with John Lee Archer. Kenworthy lived nearby and subsequently supervised construction by convict work gangs who were also housed nearby.

Unusual quarrying techniques were used to obtain the dolerite rock from very close to the bridge, reflecting its closely spaced jointing and cleavage

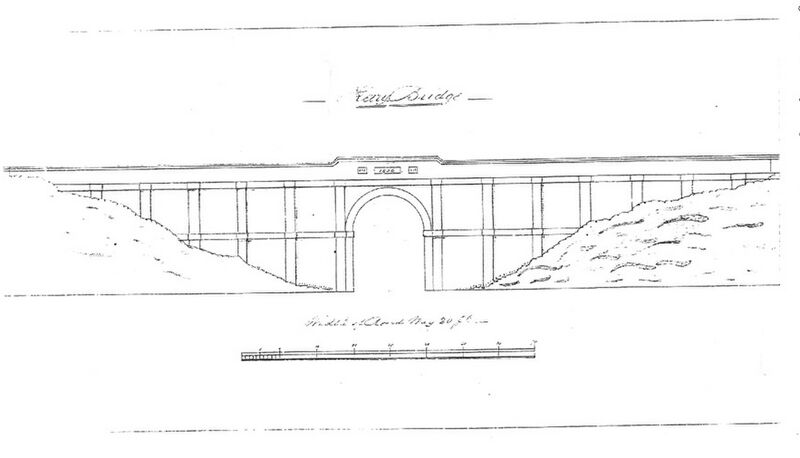

Drawing of Kerry Lodge Bridge 1834
Source: [AOT PWD 266/1333]
Loading map...

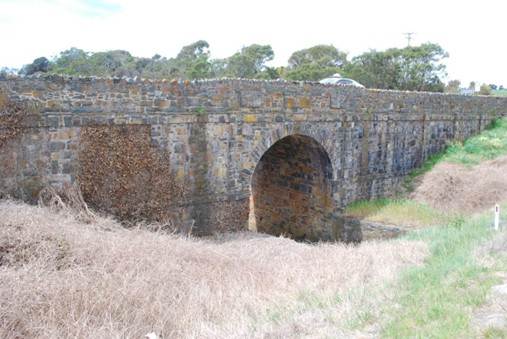

Upstream elevation of the bridge
Source: Graeme Nichols collection

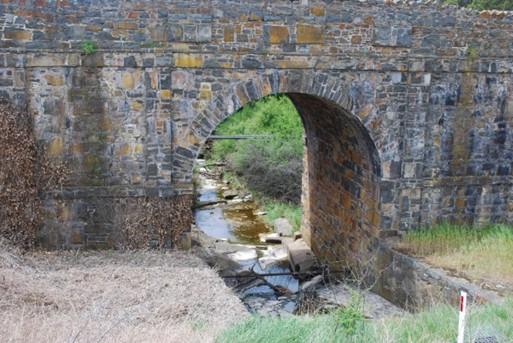

View looking through the bridge arch
Source: Graeme Nichols collection

Proposal to Nominate
Graeme Nichols Proposal to Nominate - Kerry Lodge Bridge
